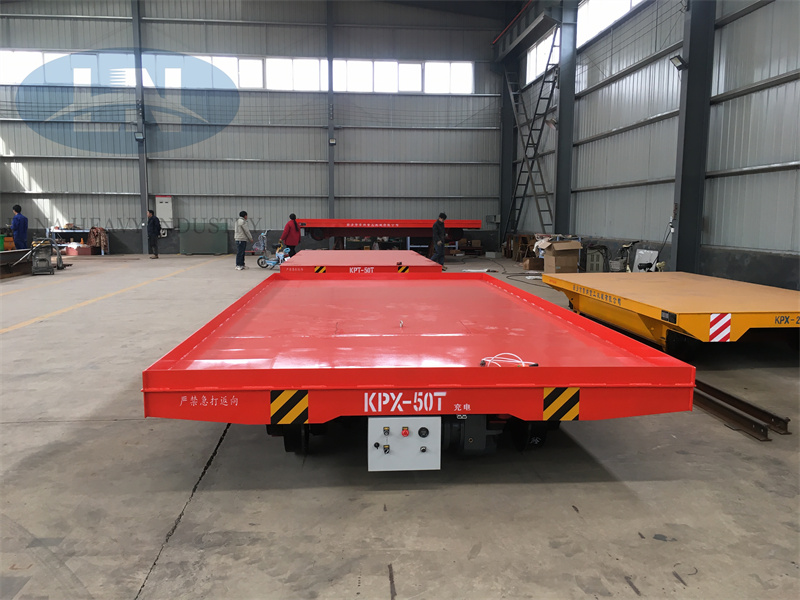

KPX 50 Tons Rail Transfer Cart

>Rail transfer cart is a heavy-duty material handling solution designed to transport loads of up to 500 tons, Powered by an on-board battery.

>50 tons rail transfer cart is ideal for applications where flexibility and autonomy are essential.

>KPX series rail transfer cart is known for its robust construction, reliable performance, and advanced safety features.

Making rail transfer cart suitable for a variety of industrial environments, including factories, warehouses, shipyards, and steel mills.

Rail Transfer Cart Main Parameters

Capacity :50 tons (can be increased to more than 500 tons upon request)

Power supply: electric drive (battery, tow cable power supply or rail power supply optional)

Drive motor: AC motor

Size :6500 x 3000 mm (other sizes on request)

Track specifications: can be customized according to customer needs (generally standard rails such as P43 and P50)

Body material: high-quality carbon steel, surface sprayed with anti-rust coating

Travel speed :20 m/min

Control mode: wireless remote control and handle control (optional automatic control)

Steering ability: straight driving

RVG: Upon request

                                                                                           Product features:

High-load design:

Adopting high-quality steel, the body structure is sturdy to ensure smooth and safe operation under 50-ton heavy load.

Flexible power supply mode:

A variety of power supply modes can be selected according to working conditions to meet different application scenarios:

Battery power supply: suitable for discontinuous or long-distance transportation on the track.

Tow cable power supply: suitable for continuous operation within a shorter distance and within the track range.

Track power supply: no need for additional charging, suitable for high-frequency operations on fixed routes.

Automation upgrade:

Optional automatic navigation (AGV function), track identification and scheduling system to achieve unmanned operation.

Environmental protection and energy saving:

Using electric drive, no exhaust gas emissions, quiet operation and low energy consumption.

High safety:

Equipped with a variety of safety measures, suitable for high temperature, high humidity or complex working environment.

Rail Transfer cart ——details

 Application areas:

Steel industry: transportation of heavy goods such as steel plates, steel coils, molds, etc.

Machinery manufacturing: handling large mechanical parts and assembly line transfer.

Shipbuilding industry: transfer of hull parts or structural modules.

Warehousing logistics: efficient material transfer in large storage areas.

Chemical companies: handling of heavy reactors and equipment.

LEINA's quality service

Customization as required

>1.Models:Agv trackless transfer cart, Rgv rail transfer cart, Rail traction trolley etc.

>2.Capacity1-1000 tons, etc., customized on demand.

>3.Table: Size (length, width, height) and shape can be customized on demand, and hydraulic or mechanical lifting systems, V-frames, roller frames, rollers, weighing devices, etc. can be installed

>4.temperature: low temperature, explosion-proof,Climbing, grooves,etc.

>5.Power supply: battery power supply, AC power supply, rail power supply, cable power supply, diesel power supply, etc.
